Fabricator's Ruler

Designed with Form. Engineered for Performance. Built to Endure.

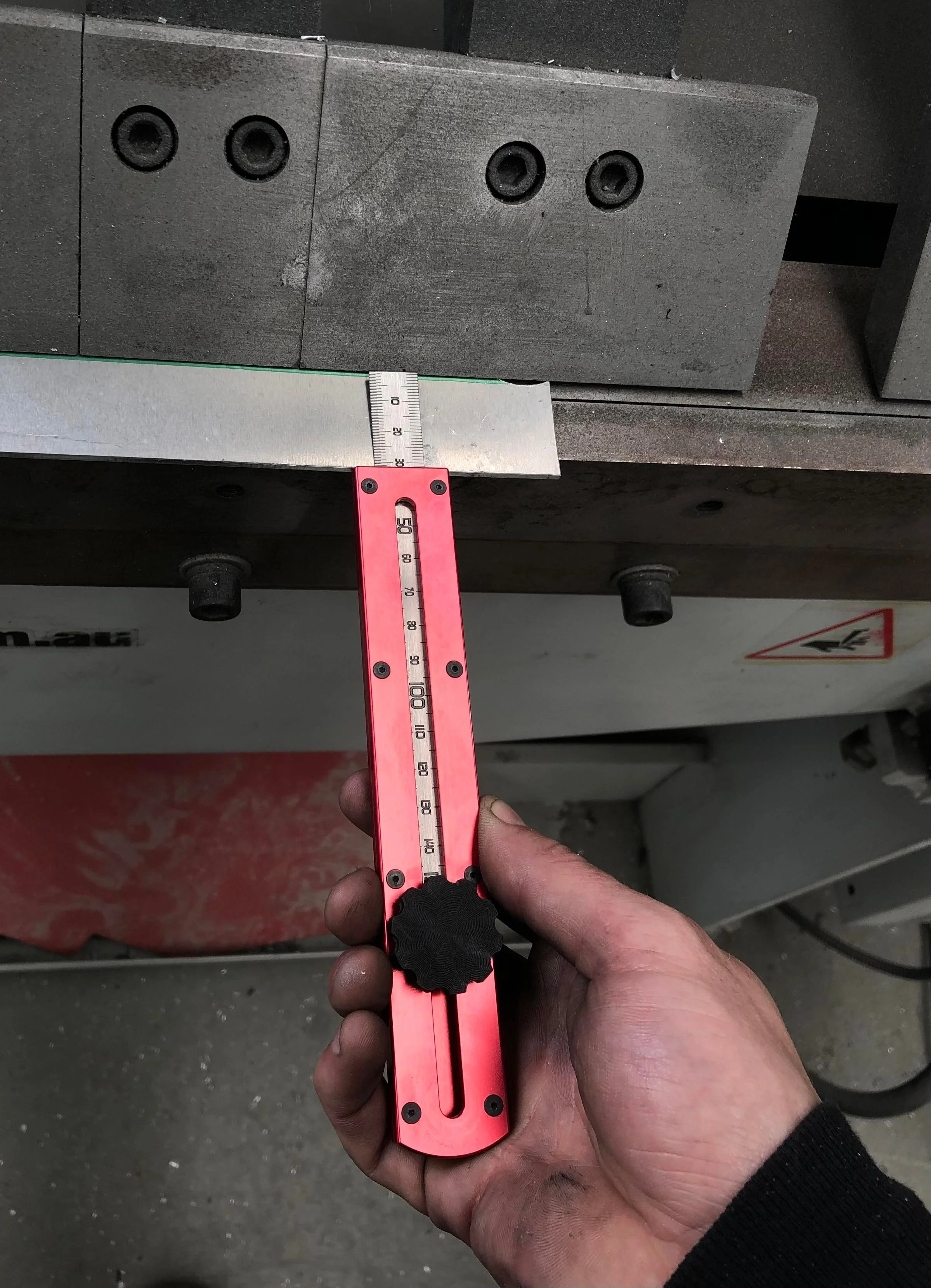

The Fabricator's Ruler is a precision layout tool engineered for speed, accuracy and repeatability. Designed for everyday workshop use, it enables fast, consistent measurement, marking and scribing without the compromises of a conventional ruler.

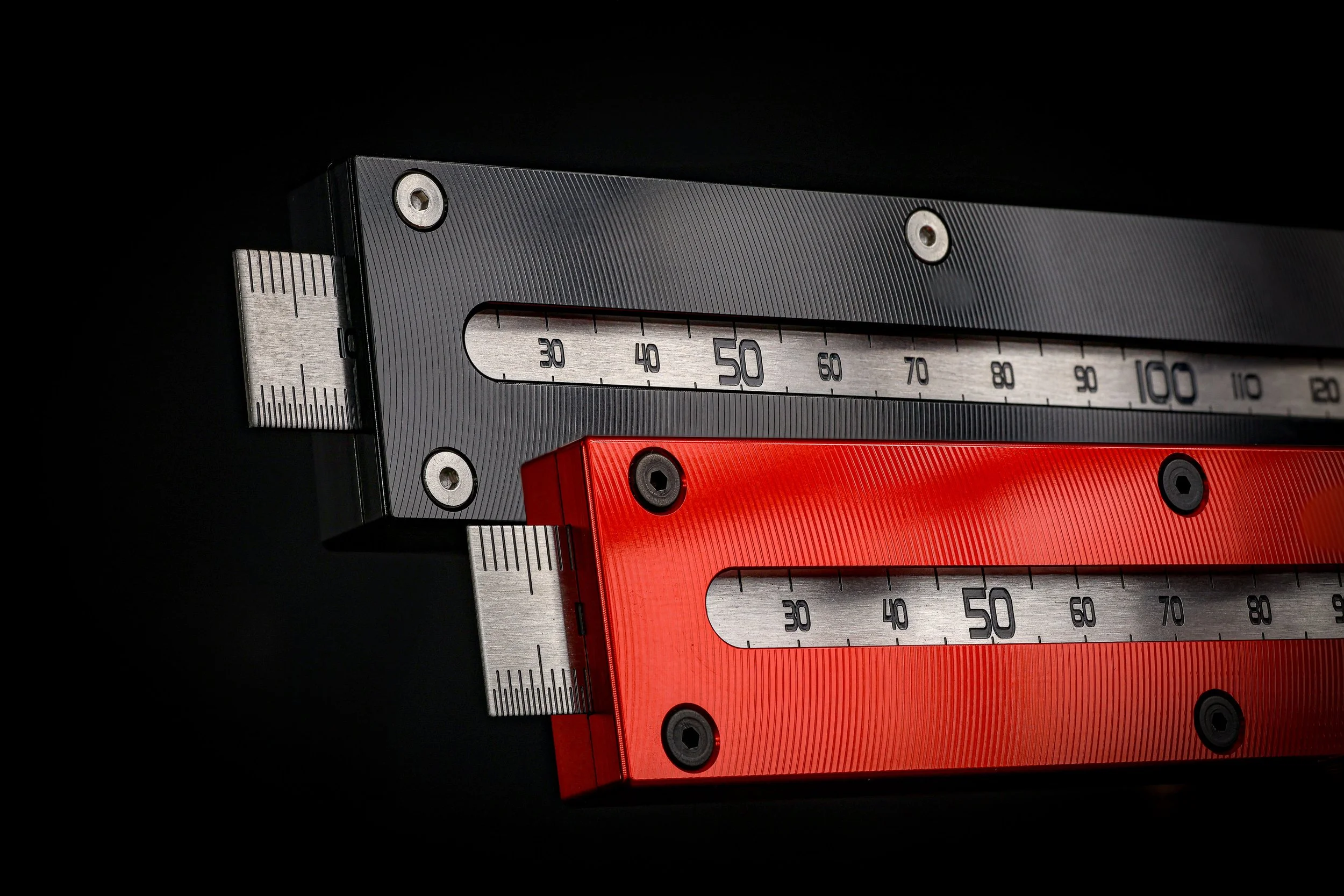

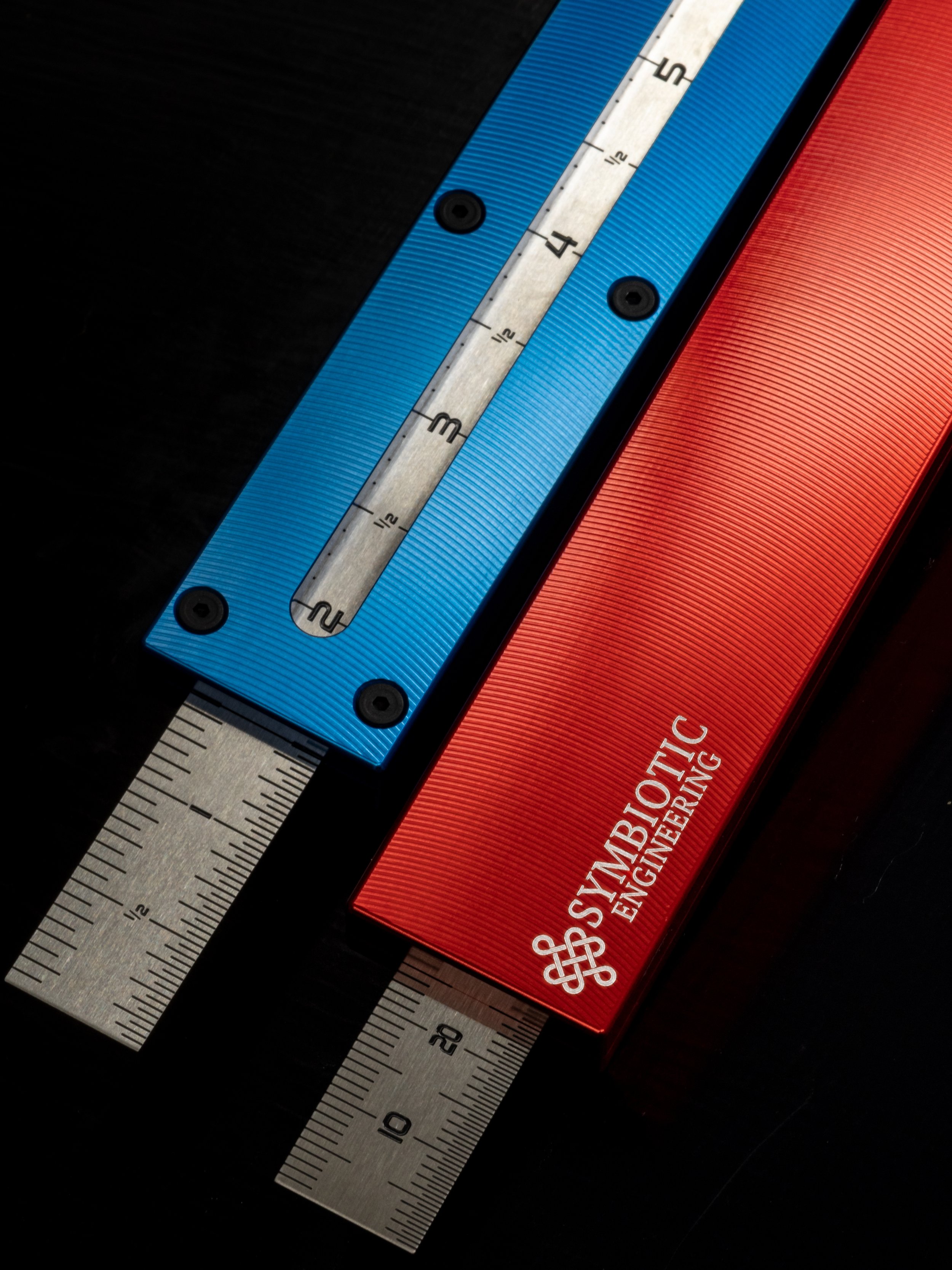

Precision machined from billet 6061 aluminium and finished with a durable anodised coating, the slim, lightweight body houses a double-sided 155 mm photographically etched stainless steel ruler with metric and imperial graduations. The high-resolution etched markings provide exceptional clarity and long-term durability.

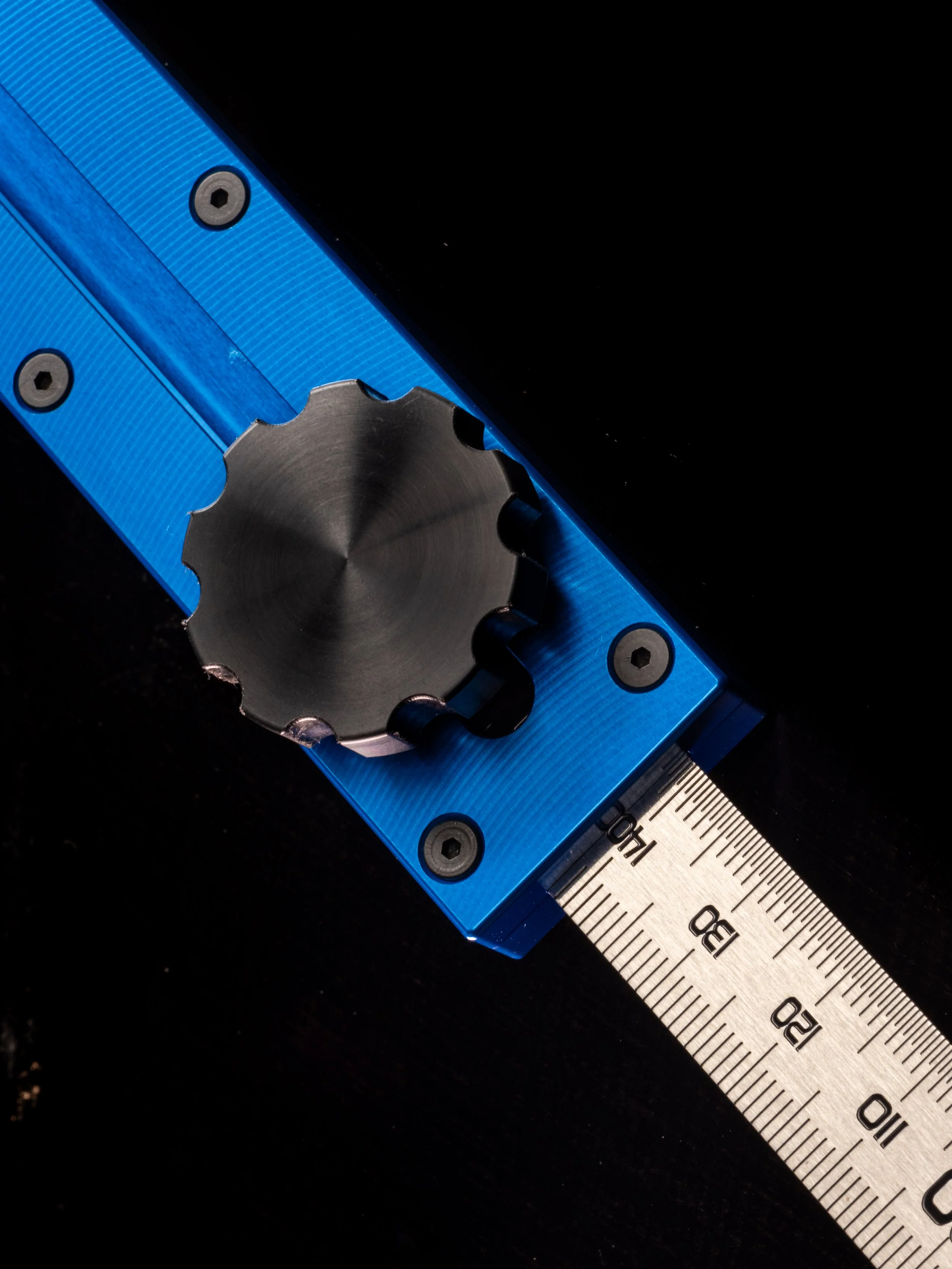

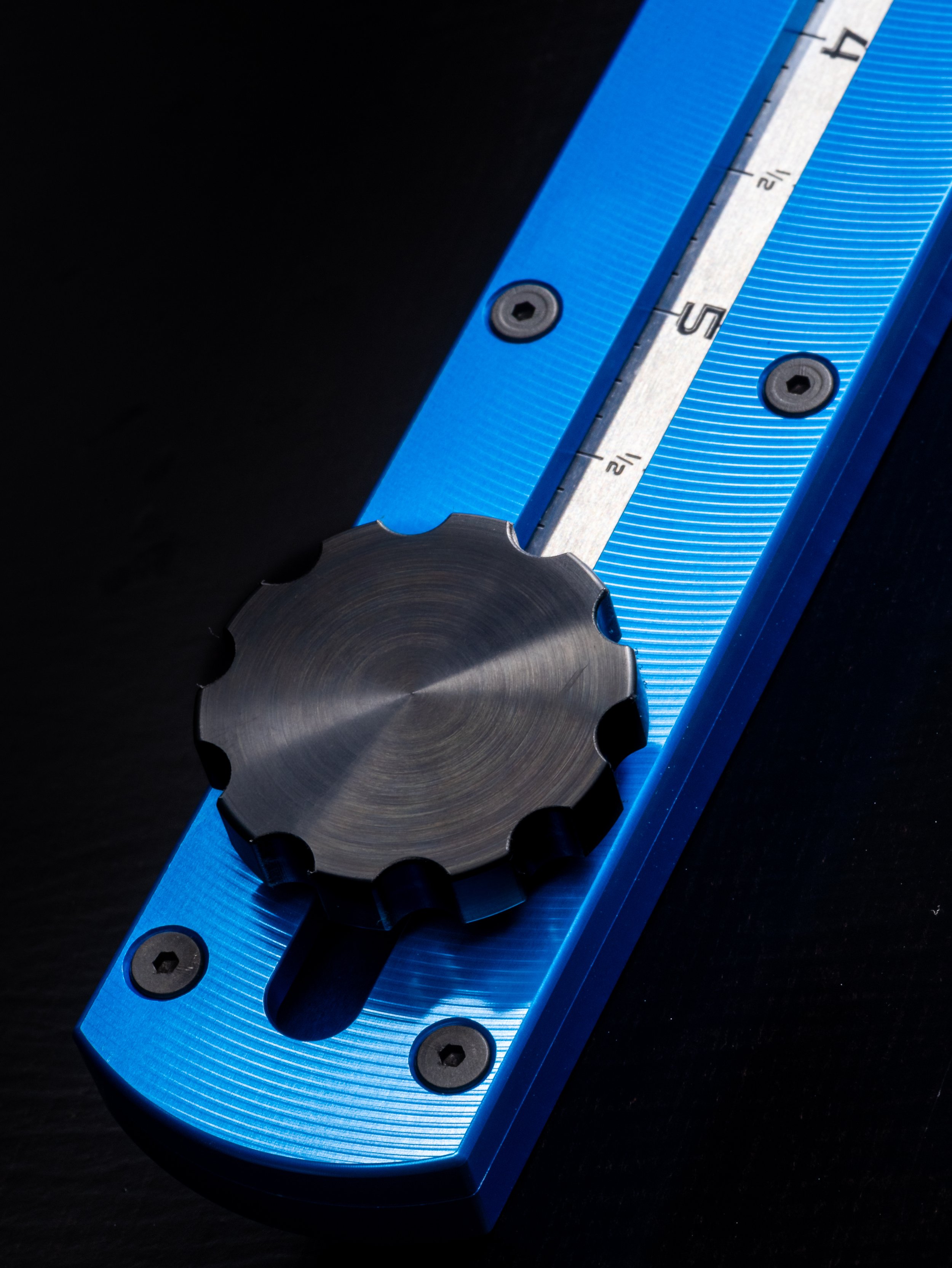

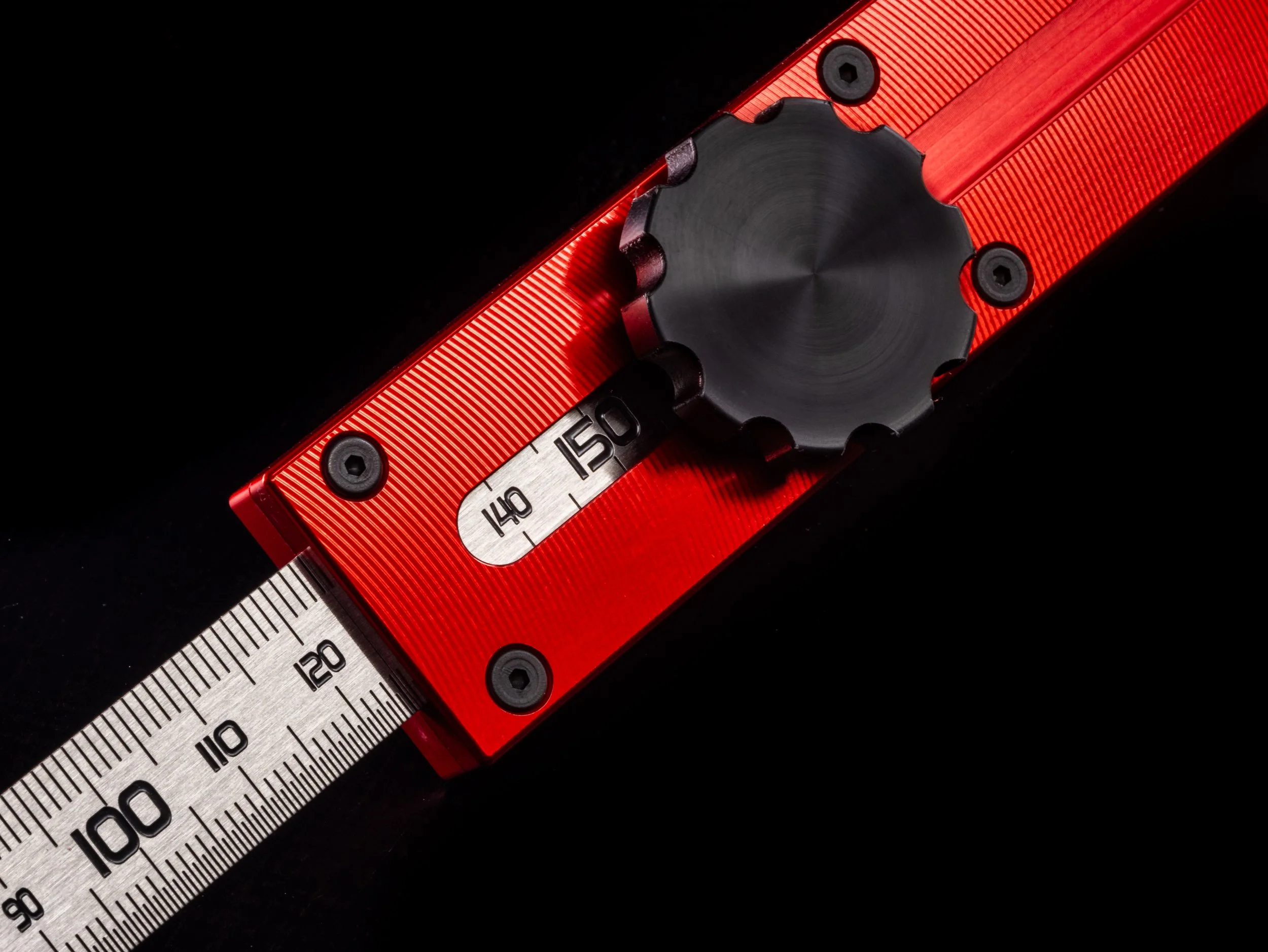

The integrated locking mechanism securely holds the ruler at the required measurement, allowing dimensions to be transferred quickly and repeatedly with confidence. Weighing less than 100 grams, the Fabricator's Ruler is compact enough for everyday carry while remaining robust enough for professional workshop use.

Designed with long-term serviceability in mind, the ruler blade is secured with eight M2.5 fasteners and can be replaced when required. The standard model accepts a 150 mm × 15 mm × 0.5 mm ruler with a 6 mm mounting hole, allowing straightforward maintenance and future replacement.

Features

• Precision machined billet 6061 aluminium construction

• Durable anodised finish

• Double-sided 155 mm photographically etched stainless steel ruler

• Metric and imperial graduations

• Integrated locking mechanism for repeatable measurements

• Lightweight design, under 100 g

• Replaceable ruler blade secured with M2.5 fasteners

• Designed for long-term serviceability
