Fabricator's Ruler HD

Designed with Form. Engineered for Performance. Built to Endure.

The Fabricator's Ruler HD builds upon the original design with increased rigidity for applications where greater support and stability are required. Featuring a wider body and a 1 mm thick stainless steel ruler, it is particularly well suited to transferring measurements around large radius tube, pipe and structural sections while maintaining excellent accuracy and repeatability.

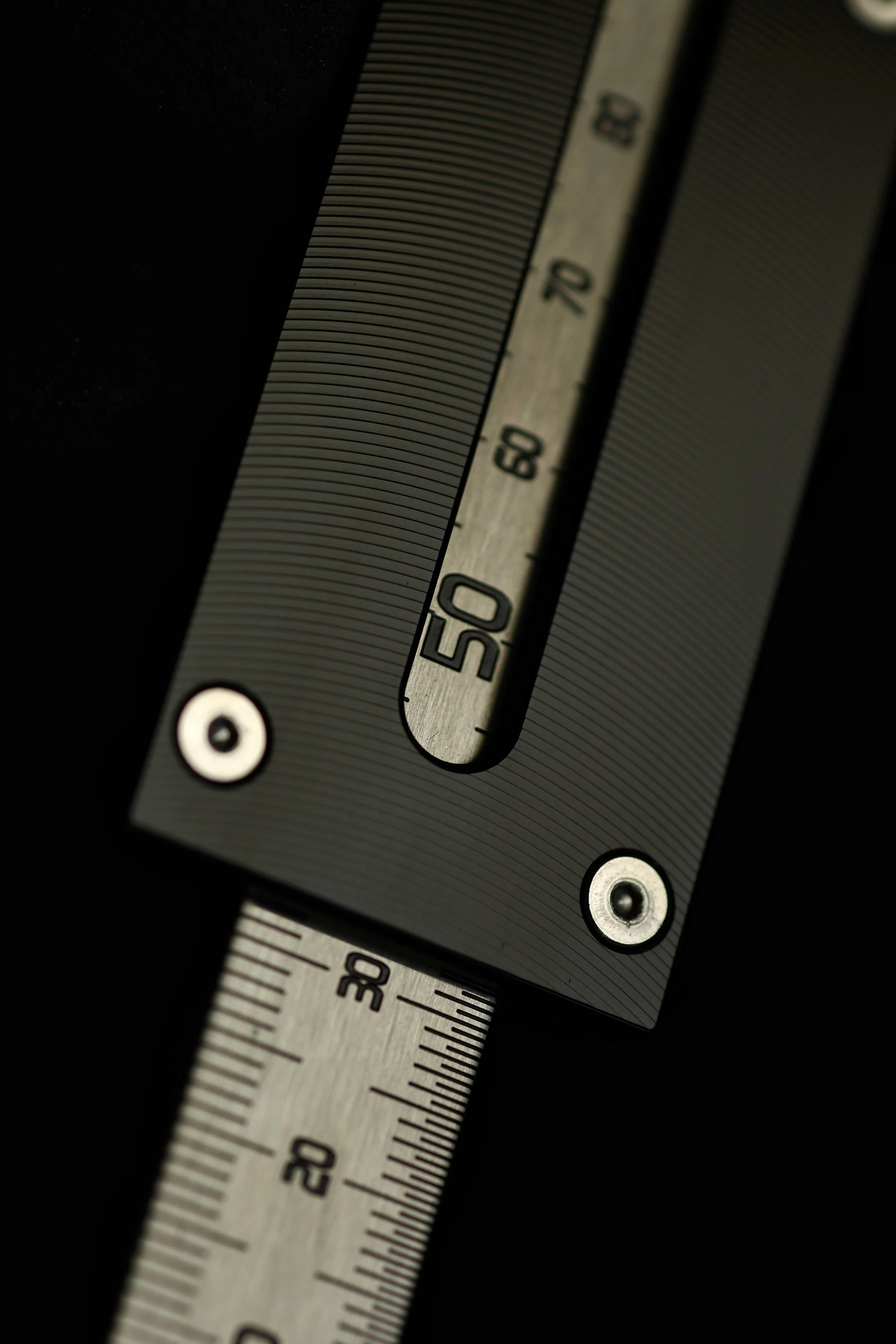

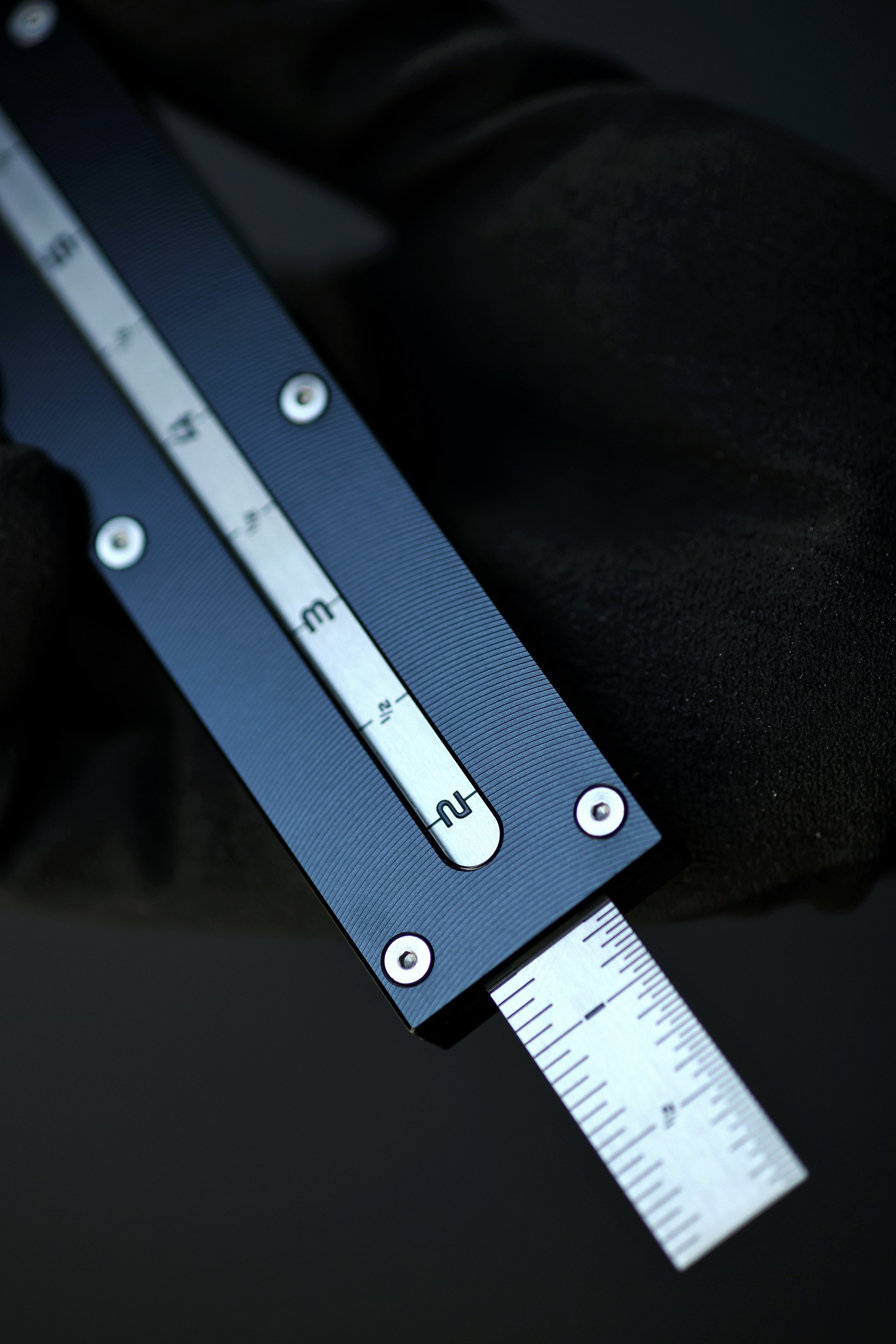

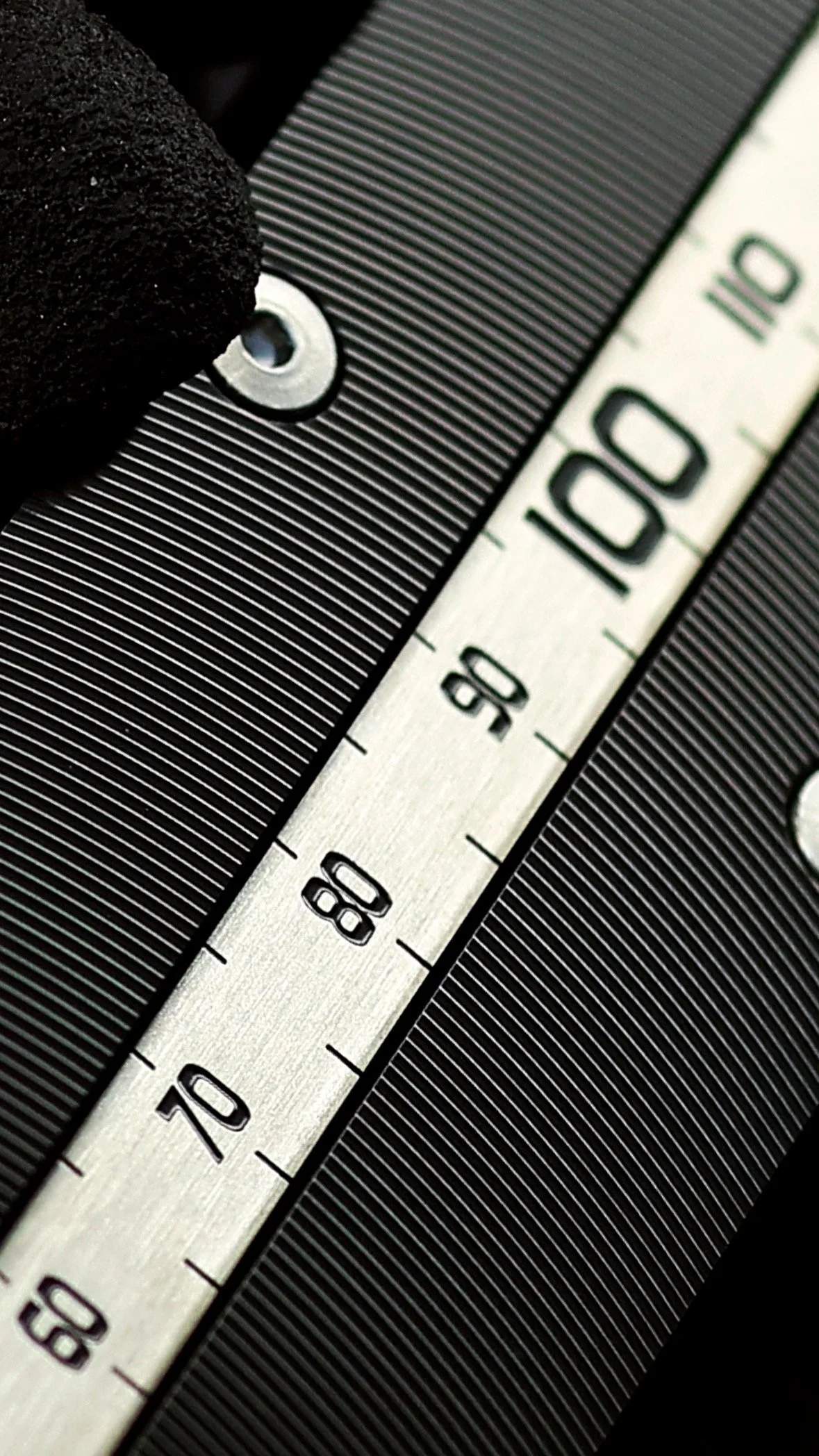

Precision machined from billet 6061 aluminium and finished with a durable black anodised coating, the HD model houses a double-sided 155 mm photographically etched stainless steel ruler with metric and imperial graduations. The thicker ruler provides increased stiffness while maintaining the precision and clarity of the original design.

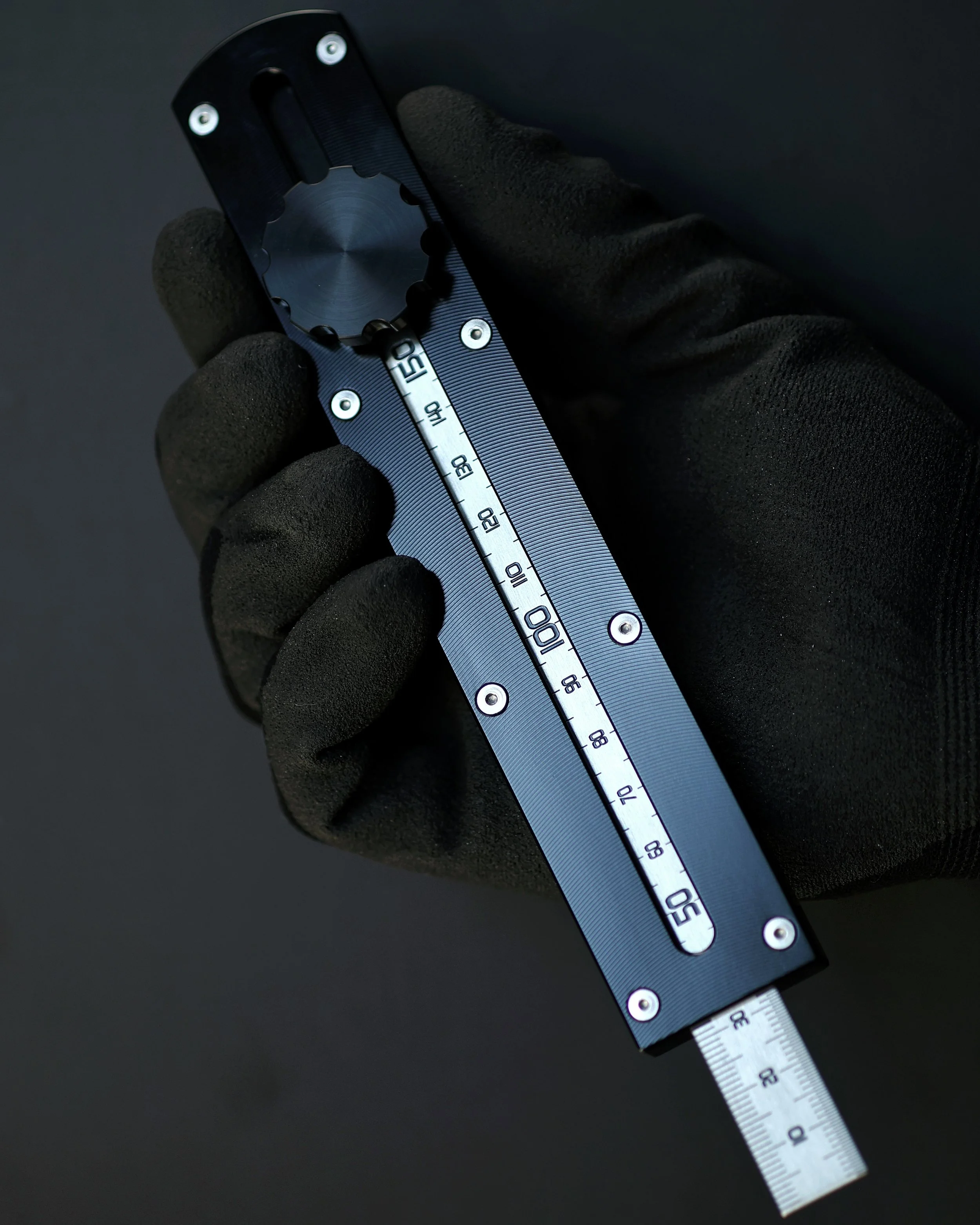

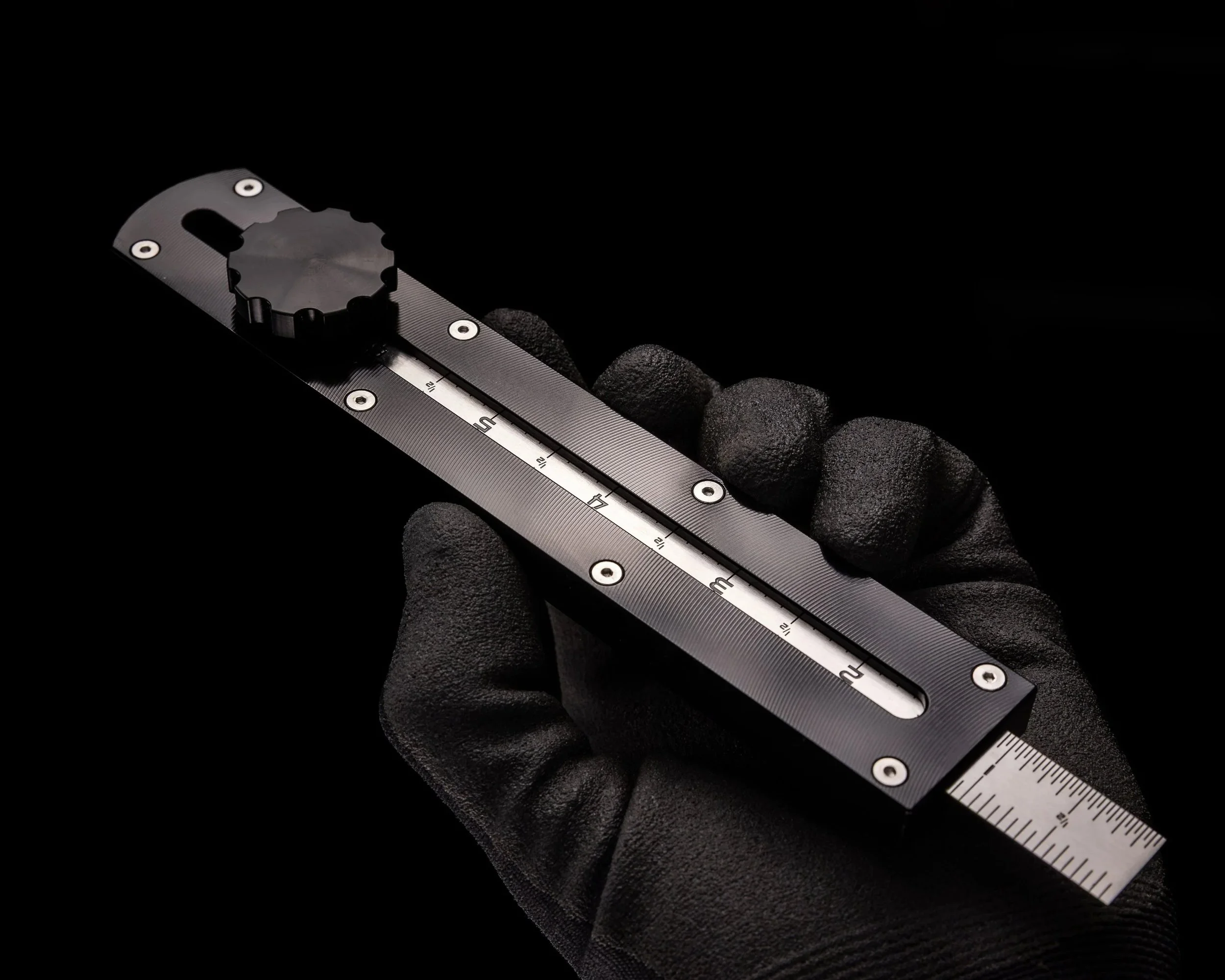

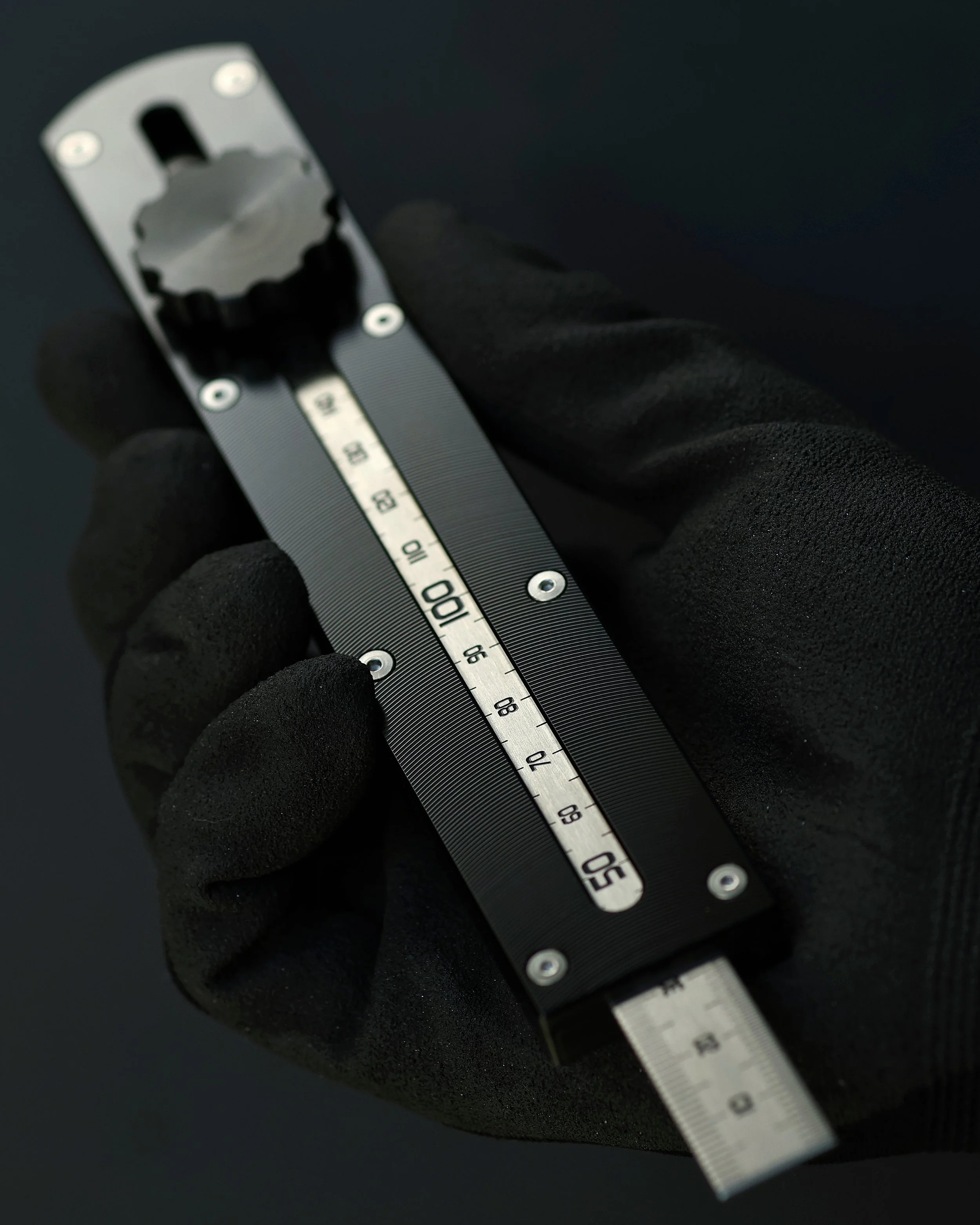

The integrated locking mechanism securely holds the ruler at the required measurement, allowing dimensions to be transferred quickly and repeatedly with confidence. The HD remains compact enough for everyday workshop use while offering improved support across larger workpieces.

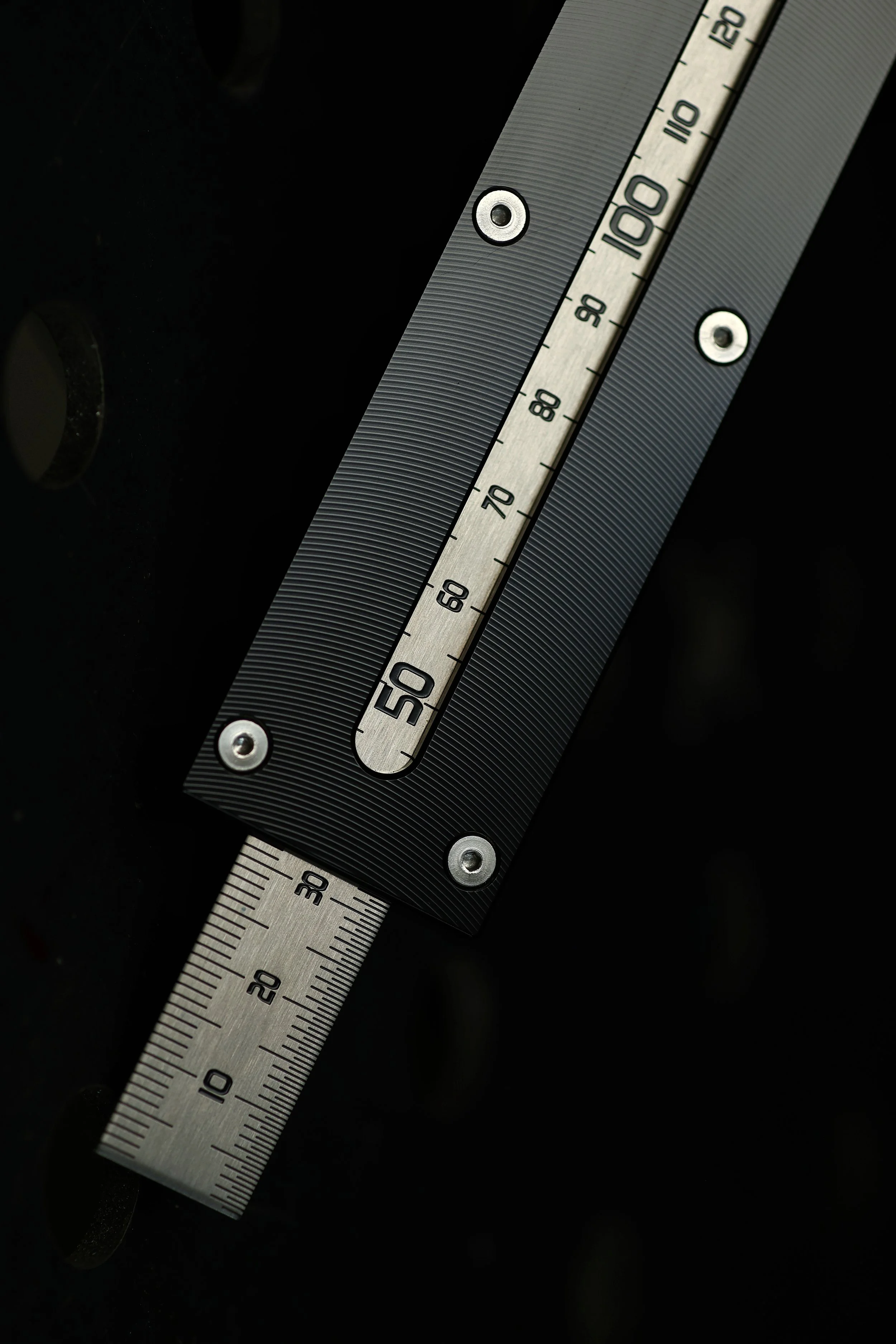

Like the original Fabricator's Ruler, the HD has been designed with long-term serviceability in mind. The ruler blade is secured with eight M2.5 fasteners and can be replaced when required, ensuring the tool remains in service for years to come.

Features

• Precision machined billet 6061 aluminium construction

• Durable black anodised finish

• Double-sided 155 mm photographically etched stainless steel ruler

• 1 mm thick ruler for increased rigidity

• Metric and imperial graduations

• Integrated locking mechanism for repeatable measurements

• Optimised for larger radius tube and structural sections

• Replaceable ruler blade secured with M2.5 fasteners

• Designed for long-term serviceability
