Magnetic V-Blocks

Designed with Form. Engineered for Performance. Built to Endure.

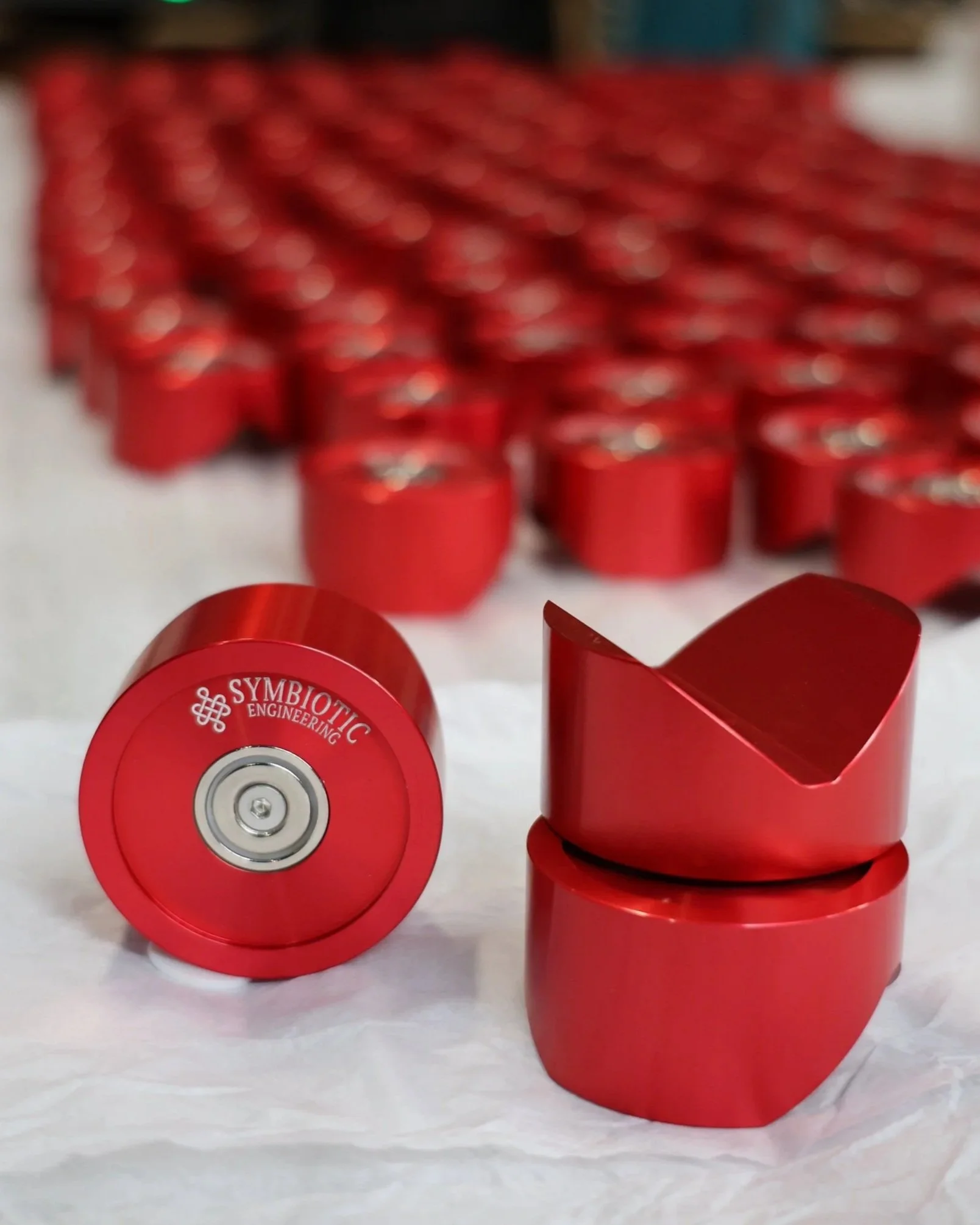

Machined from billet 6061 aluminium and finished with a durable red anodised coating, the Symbiotic Engineering Magnetic V-Blocks are designed to provide secure, repeatable fixturing while protecting finished components from damage.

Unlike steel V-blocks or clamp feet, the anodised aluminium body distributes clamping loads more evenly, reducing the risk of marking soft materials or embedding carbon steel contamination into stainless steel and other reactive metals.

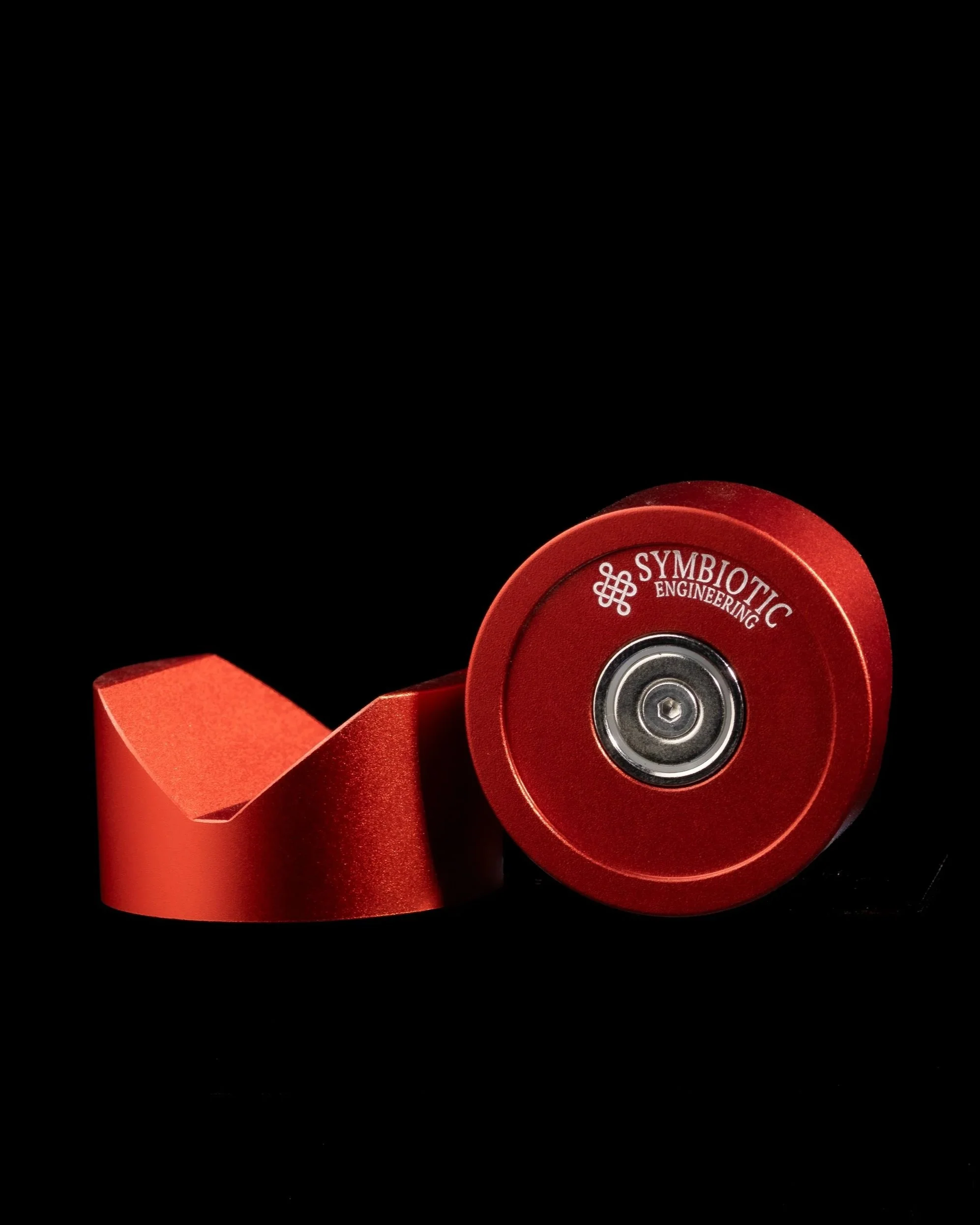

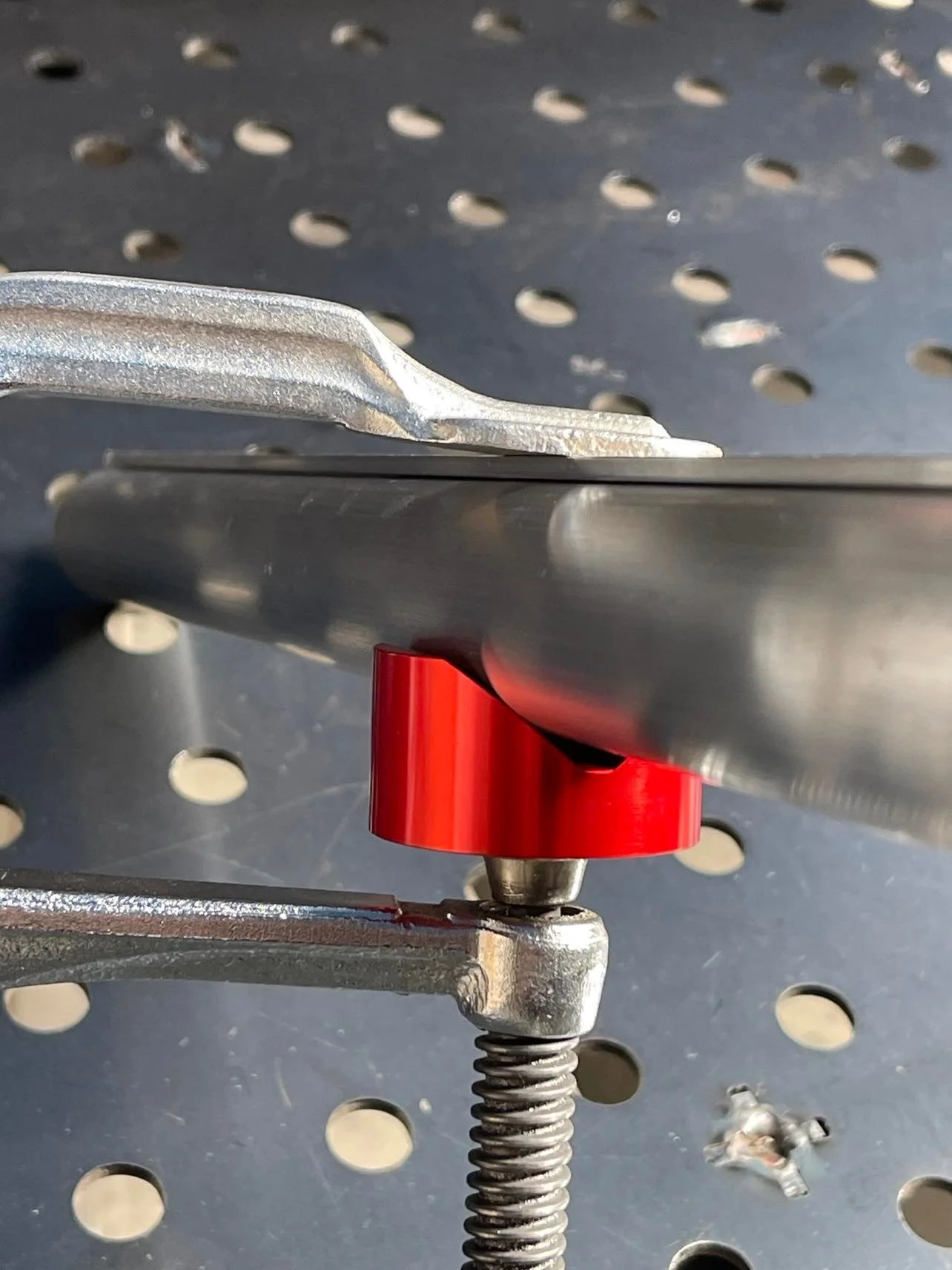

Each V-Block incorporates a 5 kg pull-force neodymium magnet to hold it securely in position during setup, while the secondary clamp recess helps locate a wide range of clamp feet up to 36mm Dia. Quickly centring & preventing the clamp from slipping during tightening.

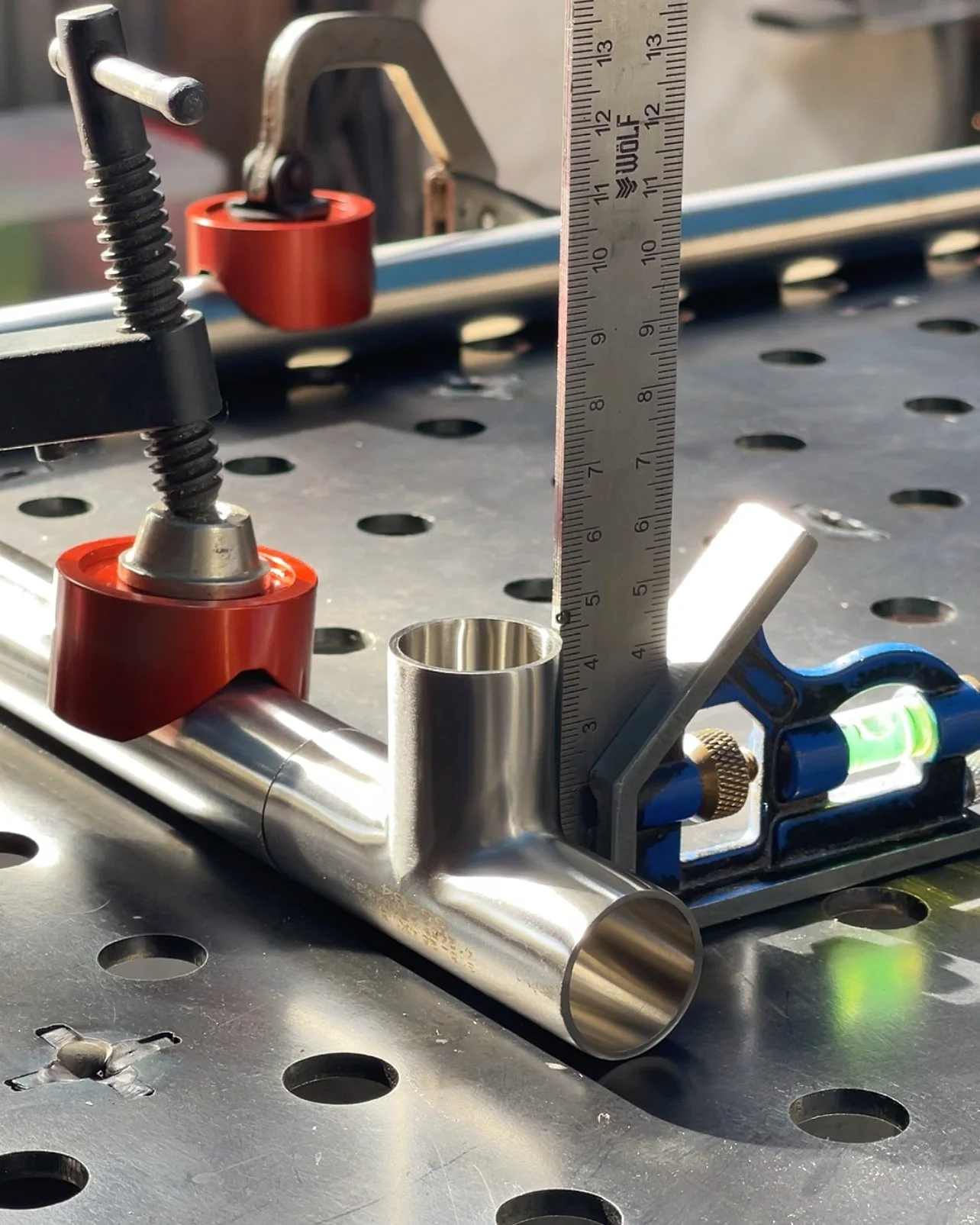

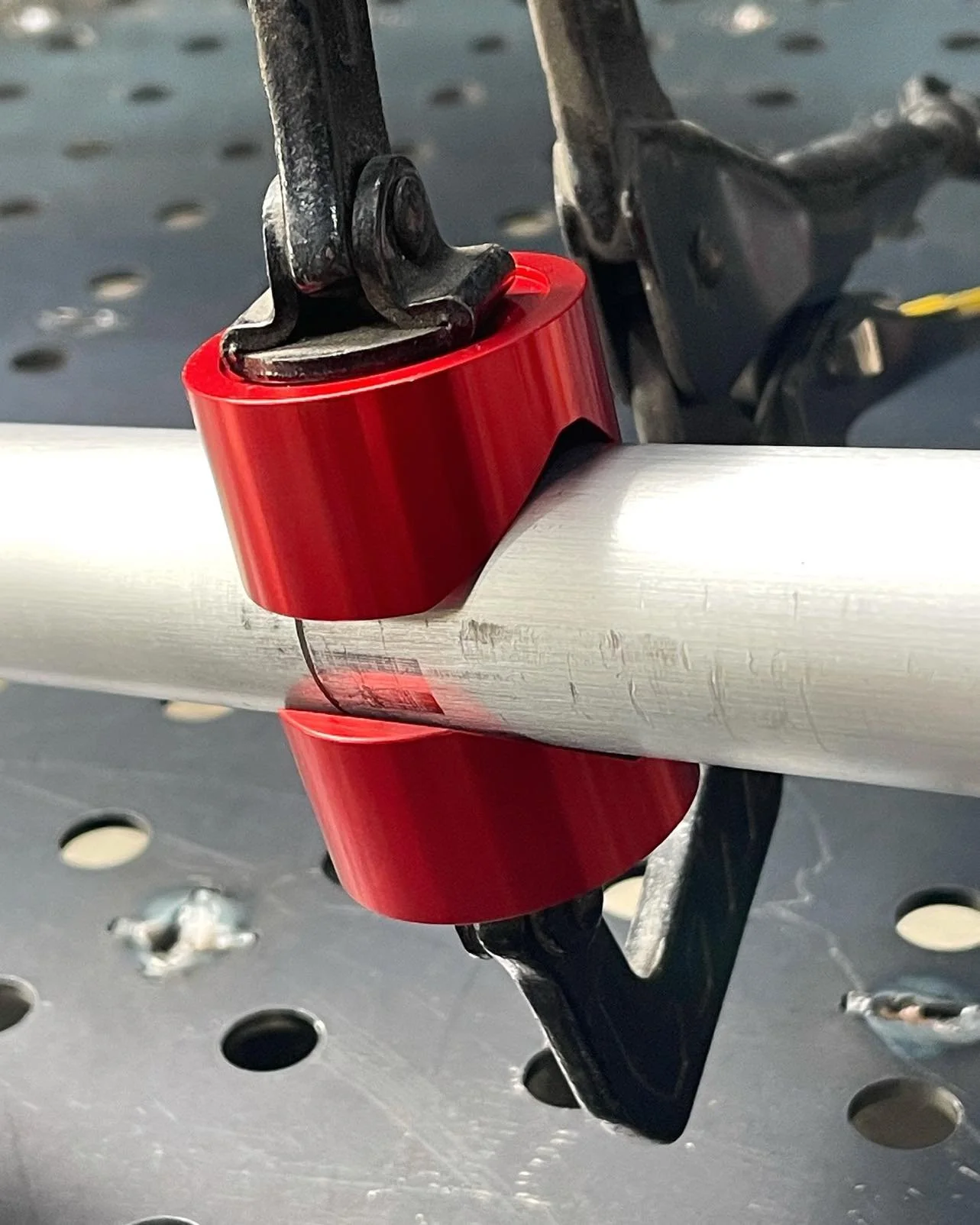

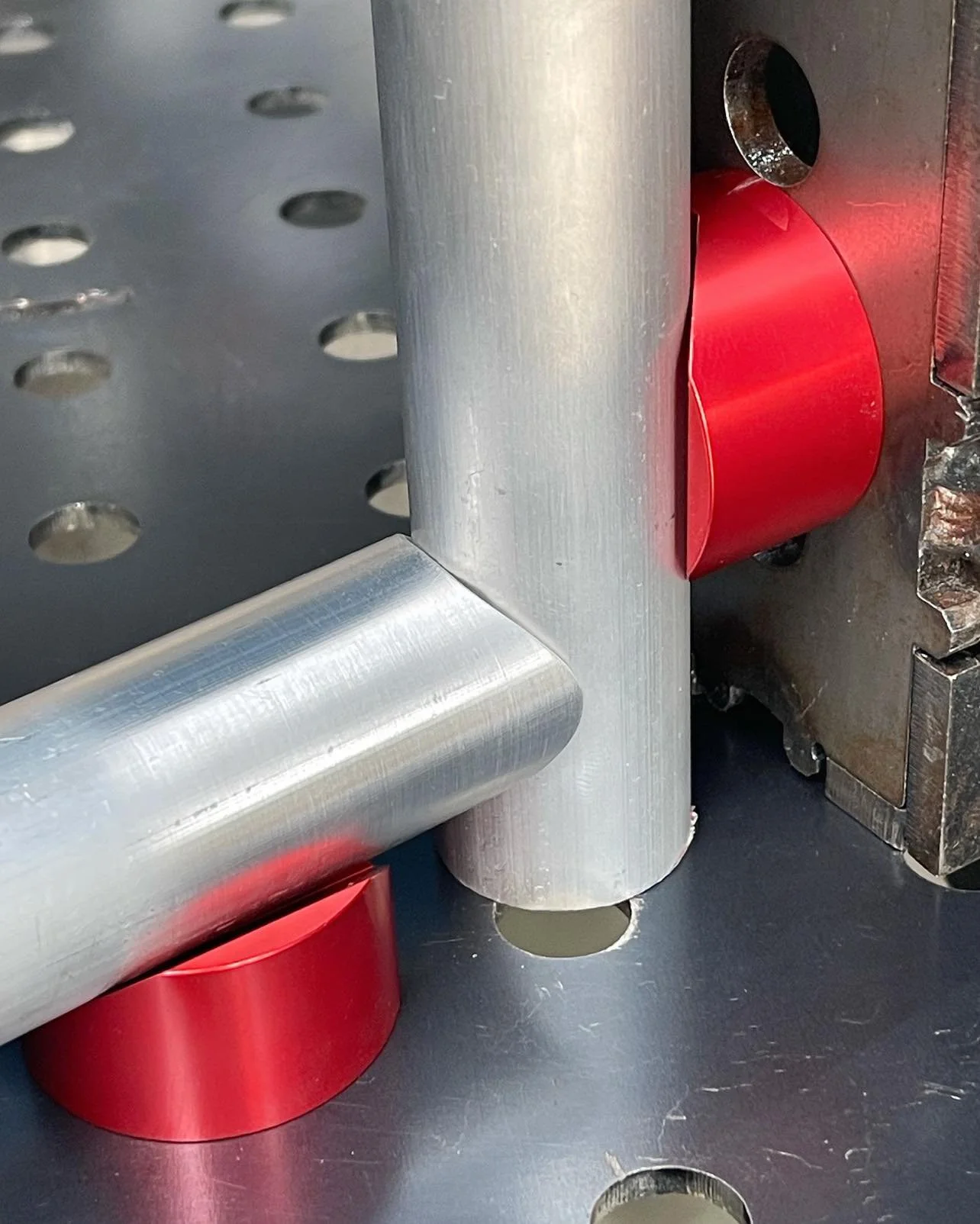

Equally suited to workholding, layout and fabrication, the Magnetic V-Blocks provide a stable platform for clamping round stock, locating tube and positioning components on the bench.

Features

• Precision machined billet 6061 aluminium construction

• Durable red anodised finish

• Integrated 5 kg pull-force neodymium magnet

• Secondary clamp locating recess

• Helps prevent marking of finished components

• Reduces the risk of carbon steel contamination when working with stainless steel and reactive metals

• Best suited to tubing from 25–63 mm

• Minimum clamping capacity: 19 mm round to flat

• Supplied as a matched pair
